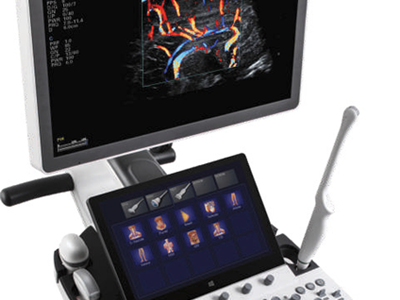

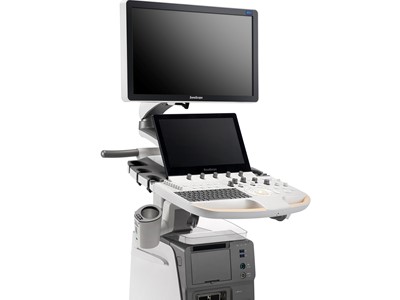

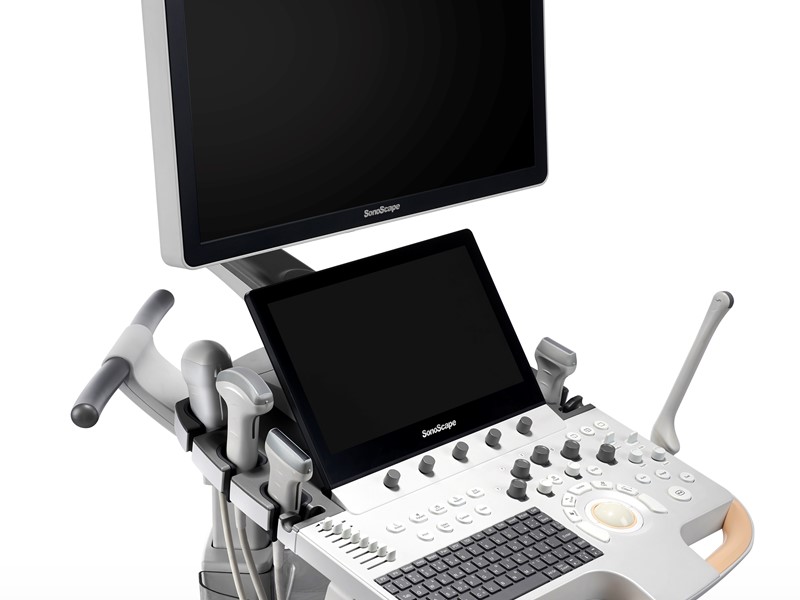

SonoScape P60

The P60 is SonoScape's main diagnostic room system solution. This system excels across all applications due to it’s specialised functions, software and wide range of new generation probes. The Wis+ platform and adoption of AI on the P60 simplifies workflow and enhances consistency. The system is capable of 4D scanning and has powerful single crystal conductors.

Probes

Available with a range of high definition probes:

Convex array C1-6A (Abdominal, Obstetrics, Gynecology), 1.0-8.0MHz/ R50mm
Micro-convex C613 (cardiology, pediatrics), 4-13MHz/ R14mm
Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Linear array 12L-A (Vascular, Small parts, MSK etc.), 3-17 MHz/ 52 mm
Linear array 12L-B (Vascular, Small parts, MSK etc.), 3-17 MHz/ 38 mm
Phased array 4P-A (Cardiac, Transcranial), 1.0-5.4 MHz
Phased array 7P-A (Cardiac, Transcranial, Infant),2-9MHz
Phased array S1-5 (Single crystal) (Cardiac, Transcranial), 1.0-7.0 MHz
Endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R10 mm
Endocavity 6V3A (Gynecology, Obstetrics), 3-15 MHz/ R8 mm(Vaginal Dilator: EDVS)
Endocavity 6V7 (Gynecology, Obstetrics), 3-15 MHz/ R10 mm
Volumetric convex array VC2-9 (Obstetrics, Abdominal, Gynecology), 2-6.8 MHz/ R40 mm
Volumetric endocavity VE9-5 (Obstetrics, Gynecology, Urology), 2-13 MHz/ R10 mm
Biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
Phased array transesophageal MPTEE (Cardiac), 4-13 MHz
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Linear array 12LI-A (Intra-operative), 4-16MHz/ 33mm
Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm

Sonoscape Probe Brochure

Features

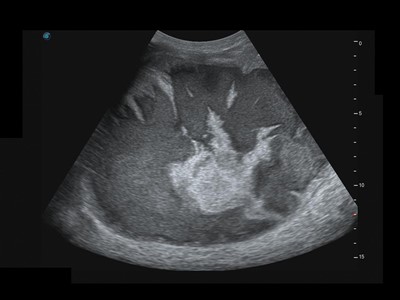

General Imaging

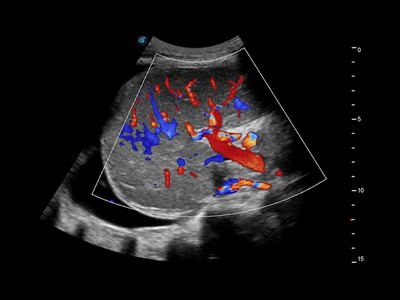

CW, PW, THI, PHI, PDI, DPDI and Colour M-mode options
μScan speckle reduction
Adaptive multi-beam imaging
B mode panoramic imaging
Vis-Needle
S-Breast & S-Thyroid use AI quantitative risk assessment on lesions based on the American College of Radiology guidelines.

OB/GYN

Wide range transvaginal probes
4D HyCosy w/ SPI for intuitive imaging of uterus, fallopian tubes and bilateral ovaries
Probes support CEUS to visualise perfusion of tiny vessels for determining lesion character in uterus and ovary
Auto NT - measurement foetal nuchal translucency thickness
Auto OB – automatic measurements
Auto Face – show clear foetal face
S- Depth, S-Foetus, S-live contour, S-Live, S- Live silhouette

Cardiovascular/Vascular

Expert cardiovascular probes w/ better penetration and S/N ratio
Mini probes for adult and paediatric transoesophageal echocardiography exams
Auto IMT (intima-media thickness), Auto EF (Ejection fraction), Auto PW
Myocardium Quantitative Analysis
Bright flow – 3D visualisation of colour Doppler
SR-Flow – Filter out tissue signal and artifacts
Micro-F distinguishes minute vessels and low velocity flows
Colour Panoramic Imaging

Accessories

Accessories:

B/W Thermal Video Printer: Sony UP-X898MD
Color Laser Jet Printer: HP M254nw
B/W Thermal Printer Paper: 1 roll
Color Thermal Printer Paper: 1 box (80 pages)
Vaginal dilator
Blue tooth remote control
ECG lead wire
External DVD Drive (USB interface)
Footswitch
Gel

Downloads

P60 Brochure

Sonoscape Probe Brochure

Training and support

All purchases come with in depth technical training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install.

Find out more

Servicing

All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.

Find out more
