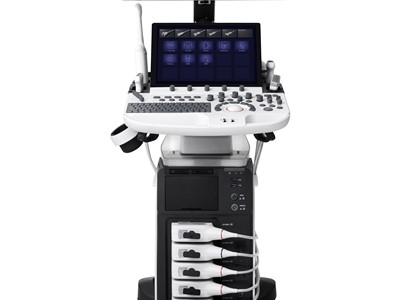

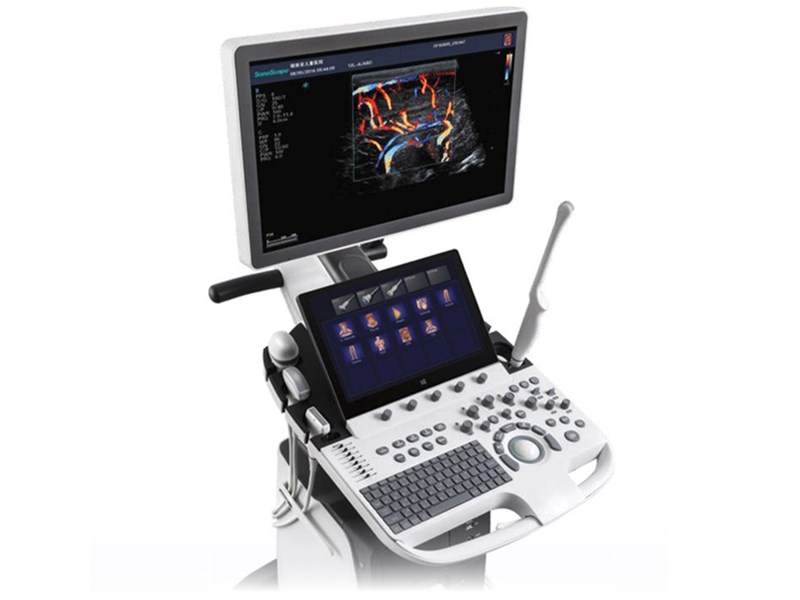

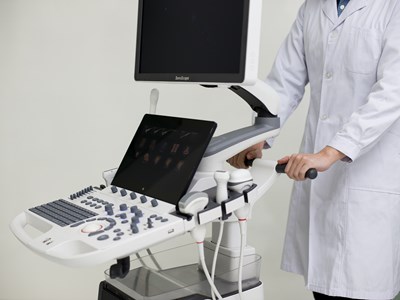

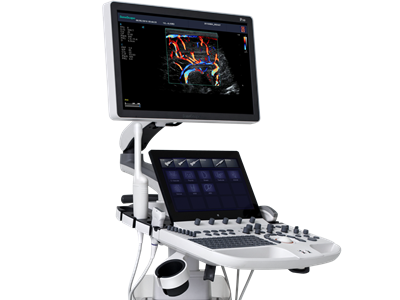

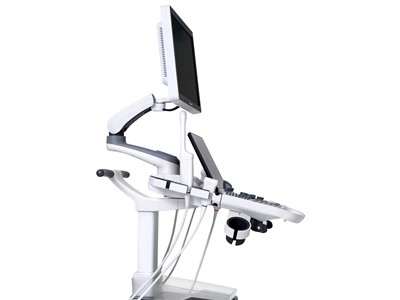

SonoScape P50 Elite

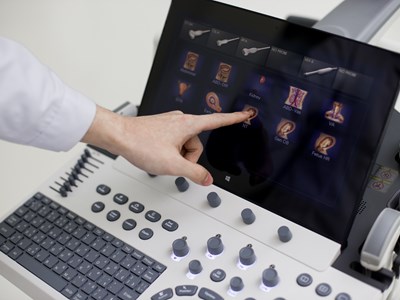

Empowered by Sonoscape's new generation ultrasound platform, the P50 Elite enhances flexibility and intelligence to a new level with the advanced ultrasonic Doppler technologies. Stable as ever, P50 Elite improves its signal transmission and reception processors which leads to higher sensitivity and more accurate detection. With a user-friendly interface, users can perform the system with the minimum requirement of training or guidance.

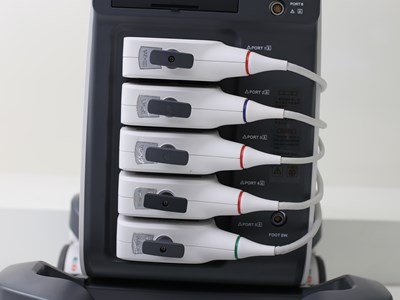

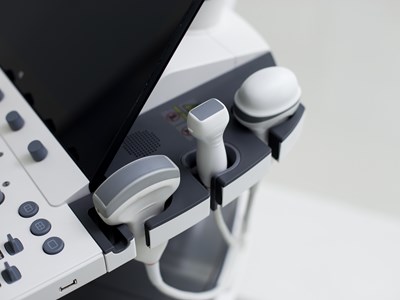

Probes

Available with a range of high definition probes:

Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Endovaginal 6V3 (Gynecology, Obstetrics, Urology), 3-15MHz/ R10mm
Linear array L742(Vascular, Small parts, MSK etc.), 4-16 MHz/ 38 mm
Linear array 12L-A (Vascular, Small parts, MSK etc.), 3-17 MHz/ 52 mm
Linear array 12L-B (Vascular, Small parts, MSK etc.), 3-17 MHz/ 38 mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0 MHz/ R50 mm
Convex array C1-6 (Single crystal) (Abdominal, Obstetrics, Gynecology), 1.0-8.0 MHz/ R50 mm
Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Convex array C613(Cardiology, Pediatrics),3-15 MHz/ R14mm
Phased array 4P-A (Cardiac, Transcranial), 1.0-5.4 MHz
Phased array 7P-A (Cardiac, Transcranial, Infant),2-9MHz
Phased array S1-5 (Single crystal) (Cardiac, Transcranial), 1.0-7.0 MHz
Endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R10 mm
Endocavity 6V3A (Gynecology, Obstetrics), 3-15 MHz/ R8 mm(Vaginal Dilator: EDVS)
Endocavity 6V7 (Gynecology, Obstetrics), 3-15 MHz/ R10 mm
Volumetric convex array VC6-2 (Obstetrics, Abdominal, Gynecology), 2-6.8 MHz/ R40 mm
Volumetric endocavity VE9-5 (Obstetrics, Gynecology, Urology), 2-13 MHz/ R10 mm
Biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
Phased array transesophageal MPTEE (Cardiac), 4-13 MHz
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Linear array 12LI-A (Intra-operative), 4-16MHz/ 33mm
Linear array 12LT-A (Intra-operative), 4-16MHz/ 33mm
Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm
Convex array 6CI-A (Intra-operative), 3-15MHz/ R40mm

Sonoscape Probe Brochure

Hardware

P50 Standard Configurations:

Optional Configuration:

ECG Package (Hardware/ Cables)

Software

P50 Standard Configurations:

Imaging modes: B( 2B & 4B )/ M/ THI/ CFM/ PDI/ DirPDI/ PW/ HPRF/ CW
Multi-beam technology
Pulse Inversion Harmonic Imaging
LGC: Lateral Gain Compensation
μ-Scan: 2D speckle reduction technology
Auto (M-tuning: One button optimization for 2D/ Color/ PW)
Spatial Compound Imaging
Real-time 2D Panoramic Imaging
Color Doppler Panoramic Imaging
Trapezoidal Imaging
Auto NT
Auto EF
S-Guide
DICOM 3.0: Store/C-Store/Worklist/MPPS/ Print/ SR / Q&R
Freehand 3D Imaging
Color M mode
Anatomic M mode
Tissues Doppler Imaging
Auto IMT
Auto face
Stress Echo
Static 3D
4D
S-Live (S-Live/ S-Live Silhouette)
C-xlasto: Compression Elastography Imaging
VIS-Needle: Needle Visualization Enhancement

Optional Configurations:

ECG Package
Auto Volume Calculation (AVC) Follicle
S-Depth
Contrast Imaging

Accessories

Accessories:

B/W Thermal Video Printer: Sony UP-X898MD/ SONY UP-D897
Color Thermal Video Printer: SONY UP-D25MD
Color Laser Jet Printer: HP Color LaserJet Pro M252dw
B/W Thermal Printer Paper: 1 roll
Color Thermal Printer Paper: 1 box (80 pages)
External Gel Warmmer
Built in battery

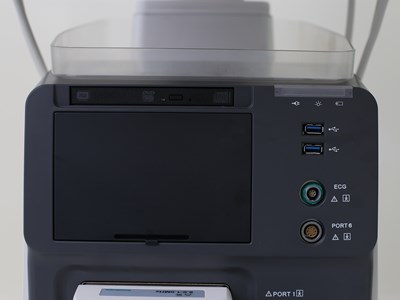

Built-in DVD(Optional before leaving factory)
Footswitch
Gel

Downloads

P50 Brochure

P50 Product Presentation

Sonoscape Probe Brochure

Training and CPD

All purchases come with in depth training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install and additional CPD is available on a one-to-one or group basis.

Find out more

Servicing

All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.

Find out more
