PMT Qs

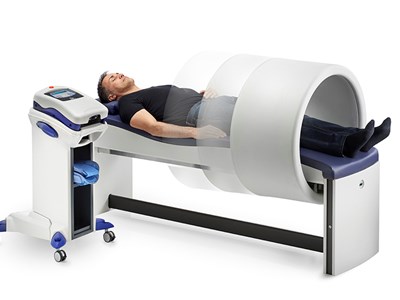

Extremely low frequency pulsed (ELF) electromagnetic therapy is well documented for the treatment of MSK conditions. ASA’s unique automated couch design allows patients pre-sets to be programmed, so treatments can be carried out automatically on the required anatomical area, whilst patients recline in comfort. Once the system is programmed, follow on treatments can be continued without direct physiotherapist supervision.
The automated magneto system is ideal for applying multiple treatments concurrently and treating extended areas of the body. The device applies Extremely Low Frequency (ELF) electromagnetic waves and can allow up to 6 solenoids and applicators to be used simultaneously.
The automated moving system automatically positions the solenoid on the area to be treated and can scan automatically and continually between two positions.
For high impact sports whole body treatment can be used routinely to reduce bone and soft tissue recovery times between events, helping to reduce degenerative tissue changes.
Included
- PMT Qs Generator and trolley
- 2 Flexa applicators – Flexible 12 solenoids applicators
- Couch with Ø 80 cm solenoid, automatic sliding
- Carry bag
Optional
- Ø 30 cm portable solenoid – treatment of limbs
- Ø 50 cm portable solenoid – treatment of body
OSTEOARTICULAR DISEASES
- Bone fractures consolidation delay
- Femural head avascular necrosis
- Senile and post-menopausal osteoporosis
- Osteochondrosis
- Sudek’s atrophy (reflex sympathetic dystrophy syndrome)
- Degenerative arthropathy: arthrosis (knee, hip bone,
- hand, foot, rachis)
- Inflammatory arthropathy (spondylitis, arthritis,
- fibromyalgia)
- Soft tissue and periarticular diseases (tendons, ligaments,
- bursitis)
- Acute and chronic articular and myotendinous affections
- (back pain, neck pain, tendinitis, painful shoulder)
- Distortions
NEUROMUSCULAR DISEASES
- Muscle sprains and distractions
- Muscle fatigue from overuse
- Neuropathies
- Peripheral nerve lesions
- Carpal tunnel syndrome
VASCULAR DISEASES
- Trophic vascular ulcers
- Diabetic vasculopathy
- Varix
- Hematomas
- Post-traumatic edemas
TISSUE REPAIR
- Pressure ulcers
- Cutaneous wounds
- 3 completely independent channels
- 6 outputs (2 for each channel): 4 solenoids and 2 Flexa applicators can be connected simultaneously.
- Frequency from 0.5 to 100 Hz
- Magnetic field intensity variable from 5 to 100%
- Treatment time from 1 to 99 mins and continuous
- Pre-set programmes that can be modified and saved
- Electromechanical moving system automatically positions the solenoid on the area to be treated (5 positions).
GENERATOR PMT QS
- Size and weight: 28 x 38 x 13 cm; 3 Kg
- Backlit LCD
- Membrane keyboard
- Power supply: 100-240V~ 50-60Hz 850 VA
UNIT CARRYING TROLLEY
- Size and weight: 63 x 54 x 85 cm; 16 Kg
FLEXA APPLICATOR
- Flexible12 solenoids aplicator
- Dimensions and weight: 22 x 37 x 2,5 cm; 1,2 Kg

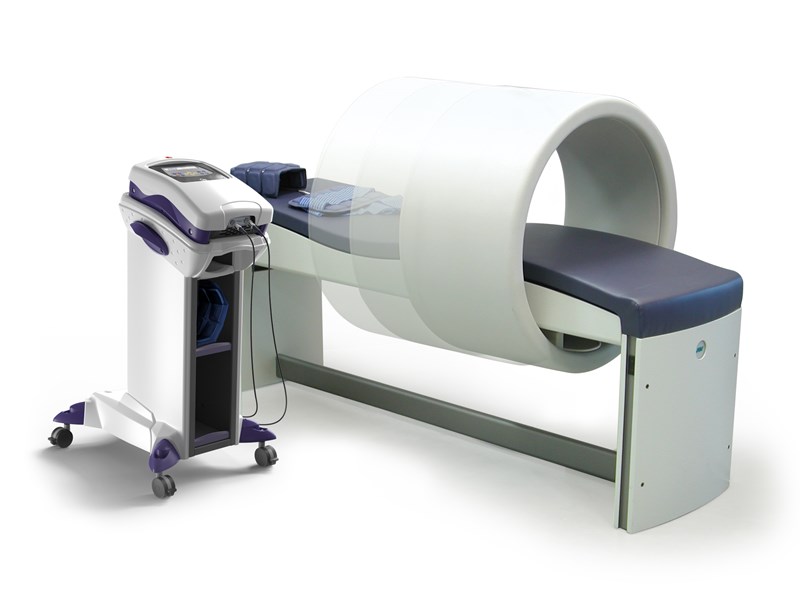

MOTORIZED COUCH WITH MOTORISED SLIDING SOLENOID ø 80 cm
- Electromechanical system for solenoid movement managed by microprocessor
- Size and weight Solenoid ø 80 cm h 40 cm, 25 Kg; Bed 188 x 50 x 72 cm, 55 Kg
- Power Supply: 90-260Vdc 50-60Hz 150 VA max
PORTABLE SOLENOID ø 30 cm
- For magnetotherapy treatment of limbs
- Size and weight: ø 30 cm, h 22 cm, 6,5 Kg
PORTABLE SOLENOID ø 50 cm
- For magnetotherapy treatment of body
- Size and weight: ø 50 cm, h 35 cm, 11,5 Kg
CARRY CASE
- Size and weight: 50 x 38 x 18 cm, 1 Kg
ALARMS AND SAFETY FEATURES
- Acoustic signals during the therapy
- Language option
- Machine status signals and alarms
