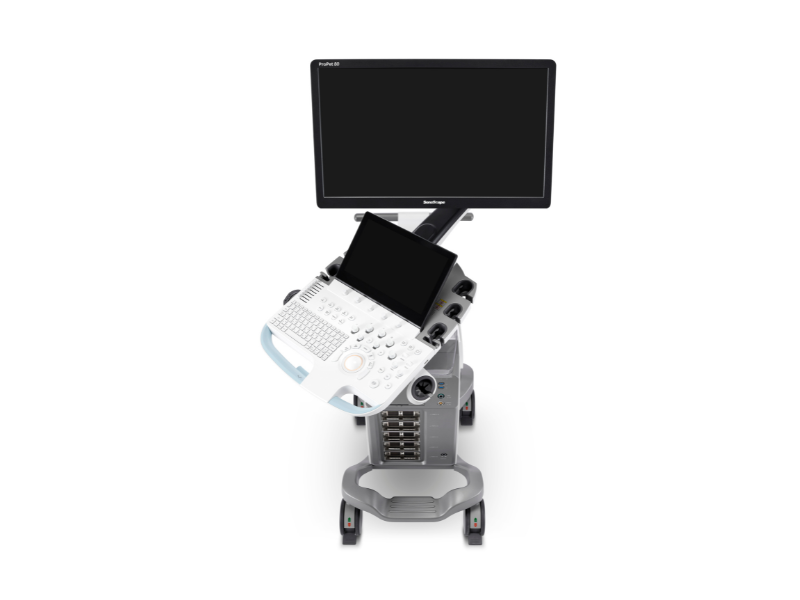

SonoScape ProPet 80

This high-end cart-based system adopts the most cutting-edge ultrasound technology to deliver exceptional image quality, advanced functionality and ergonomics to tackle the rising number of challenging cases and ever-increasing diversified demands for veterinary practice. Suitable as a hospital-based machine capable of high-end ultrasonography, particularly echocardiography in cats and small dogs.

Probes

Micro-convex

C613 (4-13MHz) – small dog and cat abdomen and basic cardiac
C322 (2-7MHz) – medium and large dog abdomen and basic cardiac

Linear

12L-A (3-17MHz) – MSK, high definition abdomen

Phased array

7P-A (2-9MHz) – cardiac dogs
8P1 (4-12MHz) – cardiac cats

Applications

Cardiology package

Software

Standard Configurations:

• Colour Doppler Flow Imaging
• Pulse Wave Doppler Imaging
• Continuous Wave Doppler Imaging
• Power Doppler Imaging
• M Mode
• Colour M-mode
• Tissue Harmonic Imaging
• Triplex
• Full Screen Zoom
• Anatomic M-Mode
• Panoramic Imaging
• MQA
• Vis-needle
• Sono-drop
• Sono-synch

Advanced imaging techniques

• μ-Scan (2D Speckle Reduction Technology)
• Spatial Compound Imaging
• HQ Scan
• SR flow
• Bright Flow
• Micro F
• Strain elastography
• Contrast imaging

Hardware

Standard configurations

• 213.8" High Resolution LED Colour Monitor
• 13.3" High Resolution Touch Screen
• Height Adjustable and Rotatable Operation Panel
• Five active probe ports
• Wifi Module
• 2TB hard drive
• Built-in ECG module
• DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R
• Built-in large capacity battery
• Gel warmer

Optional configurations:

• Built-in DVD

Accessories

Standard

• Water-resistant keyboard cover
• Dust cover
• UK power cord
• Dust-proof and protection bag for probes

Optional

• Sony thermal printer
• HP laser jet printer
• Footswitch

Downloads

SonoScape ProPet 80 Brochure

Sonoscape Probe Brochure

CPD

We offer veterinary ultrasound CPD including online ultrasound courses, practical ultrasound workshops and in-house training - click here to visit our Veterinary Academy

Training and CPD

All purchases come with in depth training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install and additional CPD is available on a one-to-one or group basis.

Find out more

Servicing

All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.

Find out more
