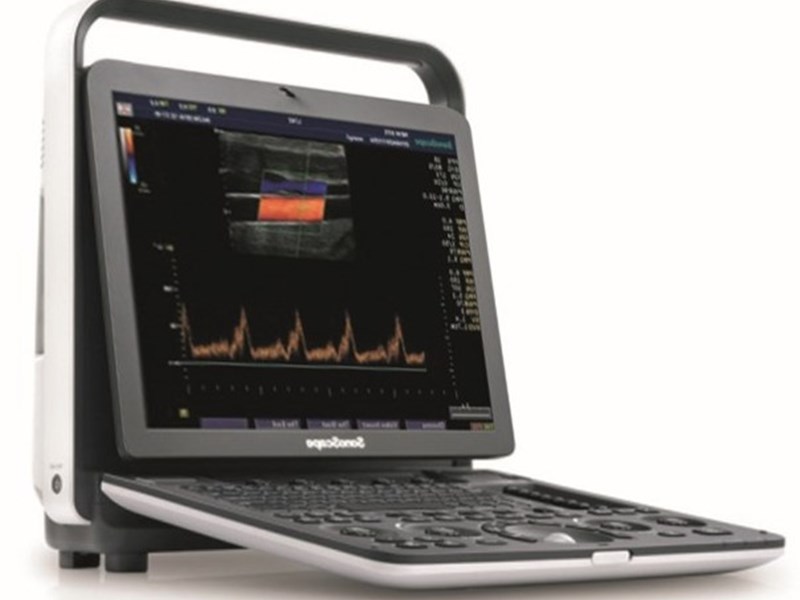

SonoScape S9Pro

Outstanding image quality and full cardiac functionality, including integrated ECG, ensures the SonoScape S9Pro is perfect for advanced sonography. Ideal for all veterinary uses including abdominal and cardiac scanning with a comprehensive set of probes available for small animal and exotic use.

Probes

Micro-convex
C613 (4-13MHz) – small dog and cat abdomen and basic cardiac
C322 (2-7MHz) – medium and large dog abdomen and basic cardiac

Linear
L742 (4-16MHz) – MSK, high definition abdomen
10I2 (4-16MHz) – exotics, ocular

Phased array

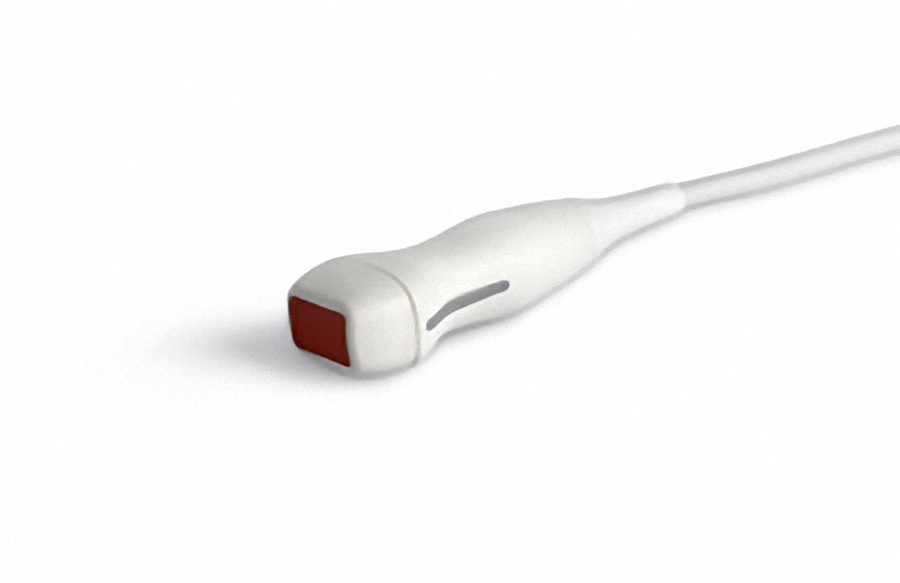

5P-2 (2-9MHz) – cardiac dogs
8P-1 (4-12MHz) – cardiac cats

Technical Specification

M-Mode, Color/PW/CW/Power Doppler
Advanced tissue doppler imaging
Multi-beam processing technology – delivering crisp, clear images
µ-Scan – speckle reduction and edge enhancement
Spatial compound imaging
Tissue harmonic imaging
C-field beam
Chroma – highlight image details
B Steer for linear probe
Quick boot up
Auto brightness adjustment
Auto image optimisation
Auto Trace
High Resolution LCD screen, with anti-reflection technology
Wide folding range and viewing angle
2 transducer ports
Backlit keyboard and intelligent panel
Long lasting battery – approximately 90 minutes
USB port, VGA, S-Video, ECG and DICOM connectivity
2 year warranty on scanner and probes

Features

Lightweight and portable
Multi-beam processing technology – delivering crisp, clear images
2 transducer ports
Quick boot up
Auto image optimisation - enhance your images with one button
Large image display region
µ-Scan – Speckle Reduction and Edge Enhancement
Quiet operation
2 year warranty on scanner and probes
Excellent range of programmable presets
Different probe combinations can be provided and additional probes can be added as required
Measurements include distance, eclipse and trace
Integral battery with approximately 3 hours operating life
DICOM transmissions and worklist
Carrying case as standard, trolley and foot switch available as optional accessories
In house clinical training provided

Downloads

S9 Pro Catalogue

Full Technical Specification

CPD

We offer veterinary ultrasound CPD including online ultrasound courses, practical ultrasound workshops and in-house training - click here to visit our Veterinary Academy

Training and CPD

All purchases come with in depth training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install and additional CPD is available on a one-to-one or group basis.

Find out more

Servicing

All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.

Find out more
