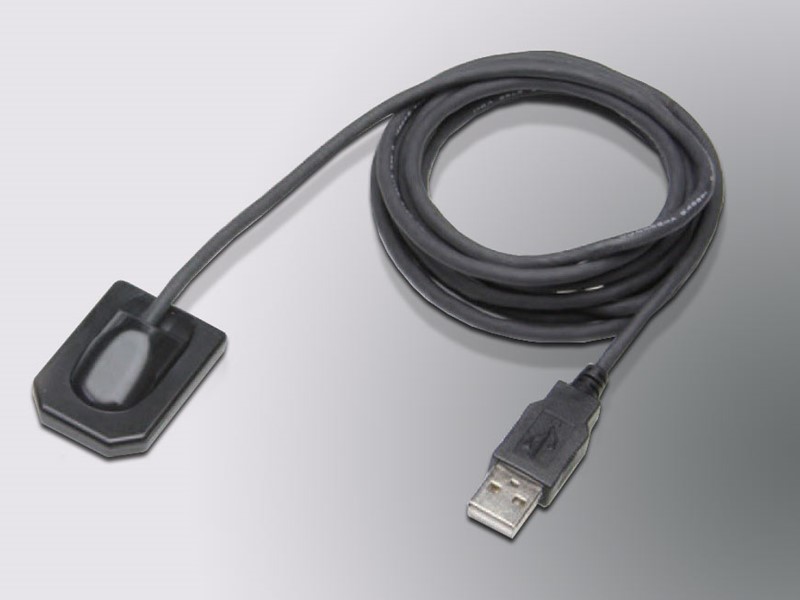

DX-R Dental Sensor
Designed for all requirements of high-resolution intraoral dental radiography, the DX-R Dental sensor is easy to use, protected by a fiberglass plate to ensure longevity and protection from water and dust, and integrates with the dicomPACS DX-R software to produce outstanding images.
|
Measurements outline: |
34.4 mm x 41.9 mm |
|
Pixel size: |
20 x 20 µm |
|
Image size: |
26 mm (H) x 34 mm (V) |
|
Pixel format: |
1300 (H) x 1700 (V) |
|
Resolution: |
20 lp/mm |
|
Triggering: |
AED |
|
Scintillator type: |
CsI |
|
Technology: |
CMOS |
|
Interface: |
USB 2.0 |
|
Protection class: |
Waterproof equivalent IP67 |
High resolution and excellent image quality
• AED - no need for adjustment in the X-ray unit
• Suitable for dental X-rays as well as for high-resolution
images of animal paws
• Extremely cost effective
• Robust, dust and waterproof according to IP67
• Large dynamic range
• Lightweight
The dicomPACS®DX-R acquistion and diagnostic software is intuitive, customisable and specifically designed to enable organ specific viewing quality optimisation, guaranteeing the highest quality X-ray images. Includes integrated X-ray positioning guide and touchscreen or mouse operation
All our units require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition. We have a range of great servicing packages, offering different levels of cover to suit your needs. Click below to find out more.
