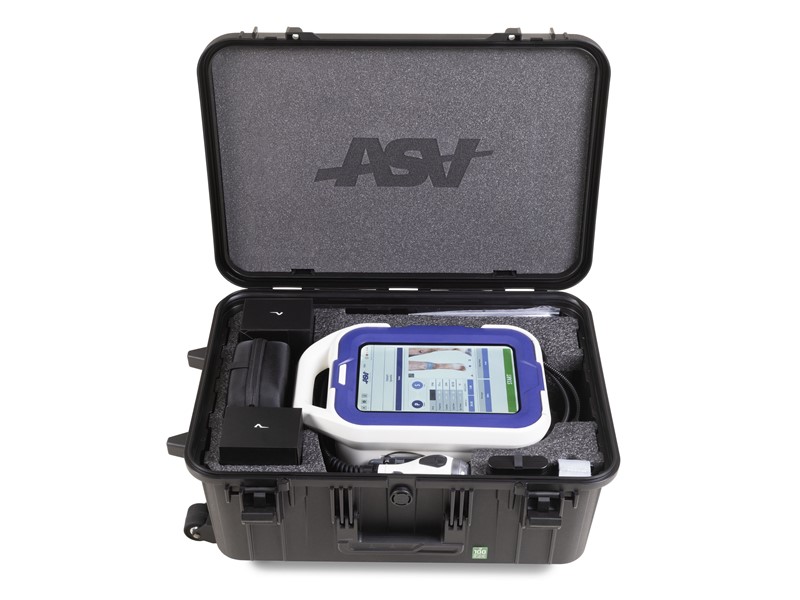

M-VET All Terrain

The M-VET All Terrain is a robust portable solution including the new-generation Class 4 Therapeutic Laser device, heavy duty hard case and battery kit. The system has a large HD touchscreen with user friendly software and over 250 protocols. It comes with a range of interchangeable heads to enable treatment of a wide variety of pathologies and can easily be transported due to it's ergonomic design, large capacity battery and specifically designed carry-case. Ideal for physiotherapists or those who provide mobile laser treatments.

The patented MLS® system delivers pulsed and continuous laser emissions synchronised for the optimal therapeutic effect with wavelengths of 808nm and 905nm. The advanced MLS® laser technology allows true pulsed emissions to achieve peak power of 270 watts, without the risk of thermal damage.

Features:

New optical fibre technology enables higher peak powers(270W)
Thermal safety is ensured using world renowned pulse technology
10.1” touch screen and state-of-the-art software provides unique user experience.
Intelligent treatment guidance for a huge range of conditions
Four electronically connected interchangeable heads
- Standard – with universal head for point treatments
- Large – treat large muscle groups in minutes
- Acupuncture – for those patients who can’t tolerate needles
- Intra-oral – get into the difficult to reach areas
Heavy duty case
Battery kit - charger, 2x lithium-ion batteries, connection cable

MLS® Technology

MLS® Laser is a Class 4 laser – the high power means shorter treatment times and quicker treatment benefits for your patients. MLS® offers 25W (Vet Blue) or 270W (M-Vet) peak power options. Both of these provide significant and similar clinical benefits. The 270W unit has shorter treatment times and requires fewer treatment sessions overall to see a similar clinical result.

The key differences between MLS® laser and other class 4 lasers are:

MLS®’s unique nanopulse technology which means MLS® is a NON-THERMAL laser and does not generate any dangerous heat build-up within the tissues – the handset can be held still and is therefore ideal for focused treatment over trigger points, joints, wound edges, disc spaces.
MLS® delivers both 905nm and 808nm wavelengths in a simultaneous and synchronised system, reducing treatment times and increasing treatment efficacy. No need to change settings or handpieces for different wavelength delivery

Clinical Indications

Wounds– post-surgical, traumatic, non-healing
Degenerative joint disease
Acute and chronic tendon and ligament injuries
Muscle strains and trigger points
Neurogenic pain
Skin conditions

Technical Specifications

Technical features

Laser source with impulse in MLS® mode up to 3.6W
Peak power outside handpiece: 270W
MLS® modulation in CPW and FPW (synchronised emission of Continuous Pulsed Wave and Frequenced Pulsed Wave)
MLS® pulse modulation frequency from 1 to 2000 Hz in 1Hz steps
Power level from 1% to 100%
Lens with target area highlighted by high efficiency red light LEDs
Automatic recognition of the lens
10.1" high brightness LCD touchscreen display
Intelligent back-up system
Pre-set programs for pets, horses, reptiles, birds and exotic mammals
Programs section for laser puncture
Programs section for diseases of the oral cavity
Viewing treatment images
Possibility of customising each treatment parameter
Reserved area to save personal protocols
Treatment time from 1" to 29'59" in steps of 1"
Automatic calculation of the energy emitted according to the parameters set
Treatment log
Usage statistics

Alarms and safety equipment

Laser emission warning light
Interlock
Acoustic signal adjustable by the operator
Date and time
Password to operate the device
Language option
Ready to be connected to the remote Laser emission signaling device

Accessories provided

Heavy duty case
Battery kit: consisting of charger, 2x lithium-ion battery, mains connection cable
4 lenses: Ø 4 mm, Ø 8 mm, Ø 2 cm, Ø 5 cm
N° 2 Laser Safety Goggles
Unit carrying case
Shoulder strap for portable use
Lens case attachable to the shoulder strap

Dimensions and weight

35 x 30 x 15 cm; 4 kg (max)

Power supply

Lithium-ion battery
100 - 240 V AC 50/60 Hz 51-68 VA external power supply unit

Optional accessories

Trolley with storage compartment:

4 swivel wheels and self-locking system
52 x 50 x 95 cm (L x P x H), 19 Kg
