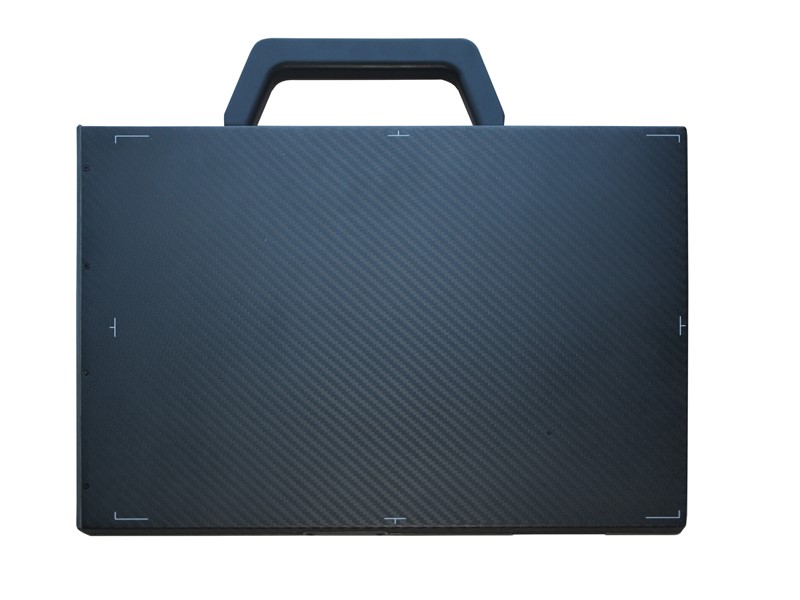

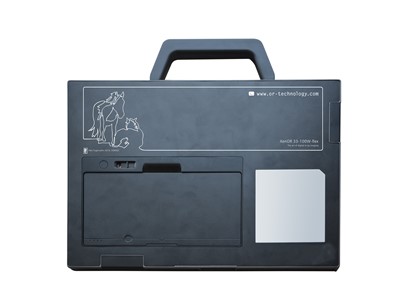

XenOR 33-100W-flex
Wireless flat panel detector
25cm x 33cm (10” x 13”)
The XenOR 33-100W-flex is the world’s first DR detector with flexible substrate. Designed as a compact and robust panel to aid portability and withstand the rigours of equine practice. This high-resolution panel has a long battery life, narrow edged frame for easy foot radiographs, and weighs only 2kg.
Features:
- A panel made from flexible substrate - without fragile glass like other DR panels on market
- Automatic synchronisation and compatibility with most generators
- Battery life approx. 8.5 hours
- Narrow edges – 7mm
- IP67 ingress protection
- Active area 25cm x 33cm (10” x 13”)
- Pixel pitch 100µm, Pixel array 3318 x 2528
- Fast operating - 3.5 seconds cycle time between images
- Light weight at 2kg
- Dimensions (W x H x D) 26.9 x 36.2 x 14.5 cm
For detailed information
XenOR 33-100W-flex, click here:

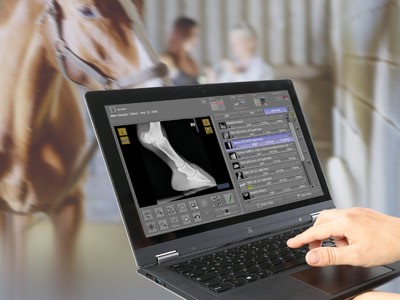

𝘥𝘪𝘤𝘰𝘮𝘗𝘈𝘊𝘚®𝘋𝘟-𝘙 Acquisition and diagnostic software for X-ray images
At the heart of each Medici system is the dicomPACS®DX-R acquisition and diagnostic software with the integrated X-ray positioning guide developed by OR Technology.
The software controls X-ray generators and X-ray units of various manufacturers, and with a simple and user-friendly touchscreen or mouse-operated interface, provides a smooth and structured workflow.
The professional dicomPACS®DX-R image processing can be adapted to individual user needs and offers outstanding image quality in veterinary medicine. It has been specially developed to enable organ specific viewing quality optimisation, guaranteeing the highest quality of X-ray images.
For more information click here
Training and CPD
All CR purchases come with training upon installation to enable you to maximise image quality and results from your equipment.
Servicing
All our units require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition. We have a range of great servicing packages, offering different levels of cover to suit your needs.
