MLS^® Class IV Therapeutic Laser - Mphi 75.5

Feel the difference

With instant results in the majority of cases you really can feel the reduction in muscle spasm to make massage therapy easier

'' I was skeptical of the MLS initially, preferring shockwave, but on the first use I was blown away. My patients love it and it allows me to get patients pain free and exercising so much faster than shockwave as there is absolutely no pain. ''

Patrick Meyer, MOst, Hands On Wellbeing

''I had suffered with sciatica for around 18 months, trying many different treatments courses to ease the pain, but with no success. I was struggling to sleep and complete normal daily activities. My physio suggested laser therapy - I felt a marked improvement after the second treatment, with complete resolution of pain within five sessions. I now continue maintenance sessions once a month to keep it under control. Life is wonderful without sciatica!''

Rudi van Nes, Patient

''I've treated very nasty tendinoses and it has cut at least 3-4 weeks off resolution times. Having used MLS laser therapy, I would now consider it an essential piece of equipment- I wouldn't practice without it.''

Patrick Meyer, MOst, Hands On Wellbeing

I am a specialist MSK Physiotherapist and initially wondered just how good MLS Class IV laser treatment could actually be? Well I wonder no more, over 70 patients have used my laser machine, 95% have responded in a positive way and the results are usually seen after the first session.

Dell Henson-Baines, Senior Physiotherapist & Clinical Lead, Physio Assured

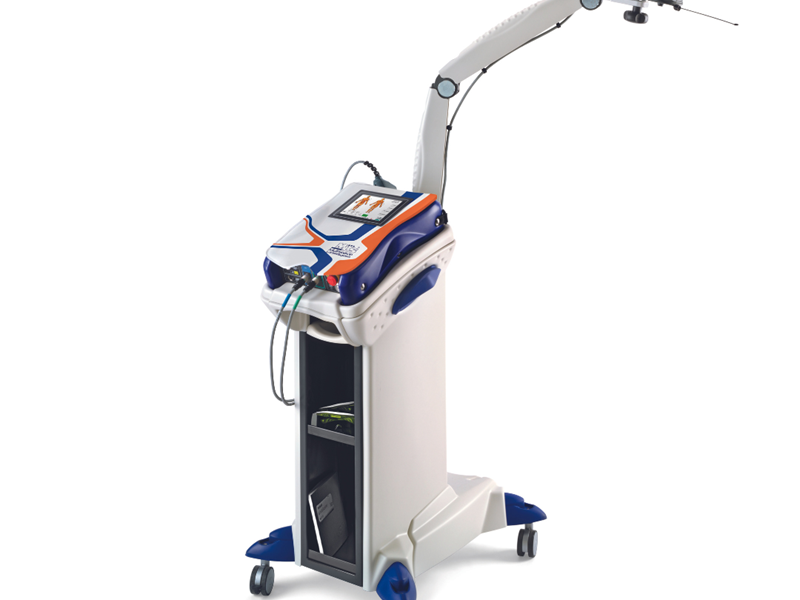

Mphi 75.5 (multi-diode)

Mphi 75.5, is the complete solution, and includes multi diode applicator and standard handpiece. The multi diode applicator has a large 5cm diameter target area, which makes it possible to easily treat large areas of muscle, or whole joints.

The multi diode applicator can be programmed to complete treatment without constant operator assistance. The multi diode applicator and standard handpiece can be used simultaneously, allowing multiple areas of the body to be treated in one session.

The patented MLS® system delivers pulsed and continuous laser emissions synchronised for the optimal therapeutic effect with wavelengths of 808nm and 905nm. The advanced MLS® laser technology allows true pulsed emissions to achieve peak power of 75 watts, without the risk of thermal damage.

Conditions

Features

Many indications
75W peak power
Charlie applicator able to treat a large target area
Simultaneous use of the Charlie applicator and regular handpiece to treat multiple areas
Simultaneous therapeutic action - analgesic, anti-inflammatory, anti-oedema
MLS Pulsed combination-synchronisation - 905nm pulsed emissions & 808nm continuous emissions - ensure deep penetration
Fast treamtnet times - from 3-10 minutes
Reduced number of applications - notable reduction of symptoms from the first session

Technical Specification

Technical characteristics

3 MLS^® laser sources, power up to 3.6 W - Peak Power 75W in the CHARLIE multidiode applicator
MLS^® laser source with handpiece power up to 1.2W - Peak Power 75W
MLS^® modulation in CPW and FPW
MLS^® impulse modulation frequency from 1 to 2000 Hz in steps of 1Hz
25%, 50%, 75% and 100% power levels
Fixed or variable duty cycle
Treatment time from 1” to 99’59” in steps of 1”
CHARLIE multidiode applicator with Target Area Ø 5 cm highlighted by high efficiency red LEDs
Handpiece with Ø 2 cm Target Area highlighted by high efficiency red LEDs
Instrument trolley with pantograph arm
User interface based on a backlit colour touchscreen monitor
User-friendly management software
Contemporary management of two independent channels
4 treatment modes:
A) specific pathologies B) pain treatment C) anti-oedema D) biostimulation
Personalizable treatment parameters
Automatic calculation of the issued energy according to set parameters

Supplied accessories and safety alarms

Laser emission warning light
Interlock
Audible alarm that can be set by the operator
Date and time functions
Password for device starting
Language change
Possibility of connecting a Laser emission signal repeater

Included accessories

N° 2 Laser Safety Goggles
Unit carrying case
Table handpiece holder
Shoulder strap for portable use
Trolley-Ergonomic trolley designed for holding Mphi, with bumper-protected wheels, a built-in handpiece holder and two storage compartments

Size and weight

63 x 54 x 85 cm; 25 kg

Power supply

Lithium polymer battery
External power supply 18V‗ 50VA

Downloads

Each year the ASAcampus (an association between ASAlaser and The University of Florence) publish 'Energy for Health', a scientific magazine focusing on the results of research and clinical studies carried out by internationally renowned researchers, doctors and specialists both in Italy and abroad.

Energy for Health 2023

Energy for Health 2022

Energy for Health 2021

Energy for Health 2020

Energy for Health 2019

Energy for Health 2018

Energy for Health 2017

Energy for Health 2016

Energy for Health 2015

Energy for Health 2014

References

Chow RT, David MA, Armati PJ. 830 nm laser irradiation induces varicosity formation, reduces mitochondrial membrane potential and blocks fast axonal flow in small and medium diameter rat dorsal root ganglion neurons: implications for the analgesic effects of 830 nm laser. J Peripher Nerv Syst. 2007 Mar;12(1):28-39.

Simunovic Z. Low level laser therapy with trigger points technique: a clinical study on 243 patients. J Clin Laser Med Surg. 1996 Aug;14(4):163-7.

Bjordal JM, Lopes-Martins RA, Iversen VV. A randomised, placebo controlled trial of low level laser therapy for activated Achilles tendinitis with microdialysis measurement of peritendinous prostaglandin E2 concentrations. Br J Sports Med. 2006 Jan;40(1):76-80; discussion 76-80.

Xavier M, David DR, de Souza RA, Arrieiro AN, Miranda H, Santana ET, Silva JA Jr, Salgado MA, Aimbire F, Albertini R. Anti-inflammatory effects of low-level light emitting diode therapy on Achilles tendinitis in rats. Lasers Surg Med. 2010 Aug;42(6):553-8.

Albertini R, Aimbire F, Villaverde AB, Silva JA Jr, Costa MS. COX-2 mRNA expression decreases in the subplantar muscle of rat paw subjected to carrageenan-induced inflammation after low level laser therapy. Inflamm Res. 2007 Jun;56(6):228-9.

Kajagar BM, Godhi AS, Pandit A, Khatri S. Efficacy of low level laser therapy on wound healing in patients with chronic diabetic foot ulcers-a randomised control trial. Indian J Surg. 2012 Oct;74(5):359-63.

Baxter GD, Liu L, Petrich S, Gisselman AS, Chapple C, Anders JJ, Tumilty S. Low level laser therapy (Photobiomodulation therapy) for breast cancer-related lymphedema: a systematic review. BMC Cancer. 2017 Dec 7;17(1):833.

Wigg, J. Use and response to treatment using low lovel laser therapy. Journal of Lymphoedema, 2009, Vol 4, No 2.

Medrado AR, Pugliese LS, Reis SR, Andrade ZA. Influence of low level laser therapy on wound healing and its biological action upon myofibroblasts. Lasers Surg Med. 2003;32(3):239-44.

Fabre HS, Navarro RL, Oltramari-Navarro PV, Oliveira RF, Pires-Oliveira DA, Andraus RA, Fuirini N, Fernandes KB. Anti-inflammatory and analgesic effects of low-level laser therapy on the postoperative healing process. J Phys Ther Sci. 2015 Jun;27(6):1645-1648.

Artés-Ribas M, Arnabat-Dominguez J, Puigdollers A. Analgesic effect of a low-level laser therapy (830 nm) in early orthodontic treatment. Lasers Med Sci. 2013 Jan;28(1):335-41.

Wang P, Liu C, Yang X, Zhou Y, Wei X, Ji Q, Yang L, He C. Effects of low-level laser therapy on joint pain, synovitis, anabolic, and catabolic factors in a progressive osteoarthritis rabbit model. Lasers Med Sci. 2014 Nov;29(6):1875-85.

Prianti AC Jr, Silva JA Jr, Dos Santos RF, Rosseti IB, Costa MS. Low-level laser therapy (LLLT) reduces the COX-2 mRNA expression in both subplantar and total brain tissues in the model of peripheral inflammation induced by administration of carrageenan. Lasers Med Sci. 2014 Jul;29(4):1397-403.

Guerra Fda R, Vieira CP, dos Santos de Almeida M, Oliveira LP, Claro AC, Simões GF, de Oliveira AL, Pimentel ER. Pulsed LLLT improves tendon healing in rats: a biochemical, organizational, and functional evaluation. Lasers Med Sci. 2014 Mar;29(2):805-11.
