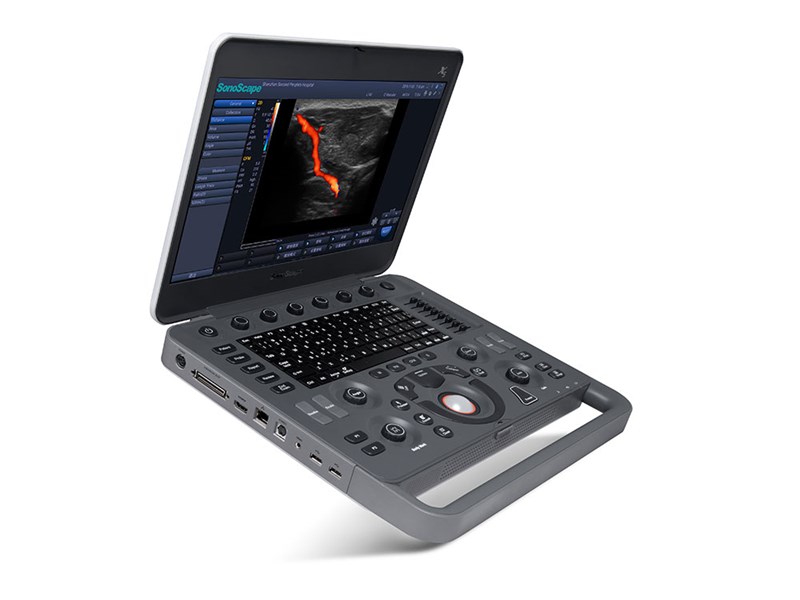

SonoScape X5

The latest laptop-style SonoScape scanner, the X5 has excellent image quality for a wide range of diagnostic applications. Similar to the X3, but with further cardiac applications. A light-weight, ultra-slim high-end scanner with user-friendly controls. Great ergonomics for very efficient scanning, swift workflow and easy management of patient examinations. The X5 has comprehensive connectivity for seamless image transfer and data management. A range of options including 3 probe port and height adjustable trolley further enhance usability.

Probes

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Endocavity linear array L741V, 12-5 MHz/ 46mm
Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Sonoscape Probe Brochure

Hardware

Standard Hardware include:

X5 main unit
15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
One transducer connector
USB 2.0/Hard Disk 500 G
Standard battery
Adaptor

Closed size: 378×339×50mm

Weight: 3.9 kg

Sotware

Standard Software include:

Imaging modes: B/ 2B/ 4B/ M-mode/Colour doppler/Power doppler/Pulse Wave/Continuous Wave/Tissue Doppler Imaging
Advanced imaging modes: Anatomic M-Mode/CFM M Mode
Dynamic Multi-beam Technology
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
Tissue Specification Imaging
Spatial Compound Imaging
Widescan: Trapezoid Imaging
Convex Extended Imaging
μ-Scan: 2D speckle reduction technology
Auto Trace
TEI Index
DICOM 3.0
Auto: Auto optimization for B/ M/ PW/ CW
Triplex
B/C dual live
Standby Mode
2D Panoramic Imaging
Prospective Saving
Show Gallery
2D Steer
Vis-Needle
Wifi

Accessories

Trolley (with cable management)
Backpack
Large Capacity Battery
Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
B/W video printer: SONY UP-D897/SONY UP-X898MD
Transducer extender
Footswitch
I/O Docking Extender (with ECG package)
Keyboard Cover
External DVD/VCD
Bluetooth Controller

Downloads

X5 Catalogue

Full Technical Specification

Sonoscape Probe Brochure

Training and CPD

All purchases come with in depth technical training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install.

Find out more

Servicing

All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.

Find out more
