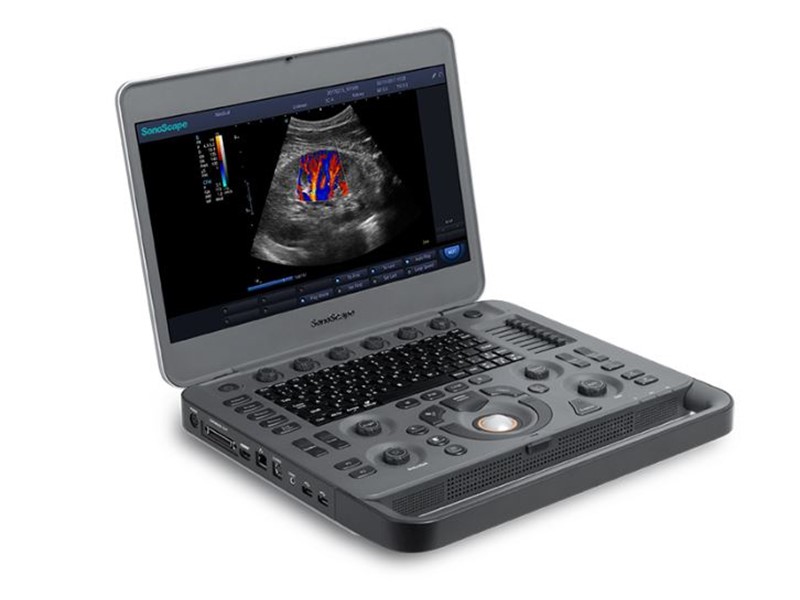

SonoScape X3

The X3 laptop design is extremely lightweight and small, providing you with an experience of mobility and flexibility in any situation. The X3’s image quality gives users a clear view of lesions, which enable users to improve diagnosis
accuracy and save scanning time. The X3 has colour Doppler, allows needle visualisation and 2D panoramic imaging.

Probes

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz

Sonoscape Probe Brochure

Hardware

Standard Hardware include:

X3 main unit
15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
One transducer connector
USB 2.0/Hard Disk 500 G
Standard Battery
Adaptor

Closed size: 378×339×50mm

Weight: 4.4 kg

Software

Standard Software include:

Imaging modes: B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW/ CW
Dynamic Multi-beam Technology
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
Tissue Specification Imaging
Spatial Compound Imaging
Widescan: Trapezoid Imaging
Convex Extended Imaging
μ-Scan: 2D speckle reduction technology
PW Auto Trace
TEI Index
DICOM 3.0
Auto: Auto optimization forB/ M/ PW/ CW
TGC: Time gain compensation
LGC: Lateral gain compensation
SR Flow
Triplex
B/C dual live
Standby Mode
2D Panoramic Imaging
Show Galary
2D Steer
VisNeedle
Wifi

Optional configurations:

Color M Mode
Tissue Doppler Imaging
Anatomic M Mode
B Mode Prospective Saving

Downloads

X3 Catalogue

Sonoscape Probe Brochure

Accessories

Trolley (with cable management)
Backpack
Large Capacity Battery
Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
B/W video printer: SONY UP-D897/SONY UP-X898MD
Transducer extender
Footswitch
I/O Docking Extender (with ECG package)
Keyboard Cover
External DVD/VCD
Bluetooth Controller
