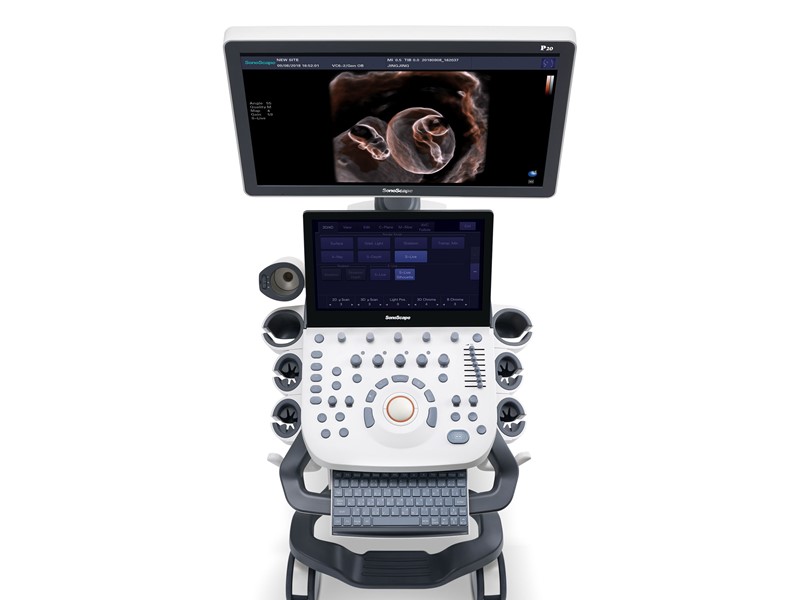

SonoScape P20

The P20 is the entry-level cart-based scanner from SonoScape with outstanding image resolution. The ergonomic design optimises workflow with intelligent diagnostic tools and auto measurement packages reduce examination times. The image quality is outstanding across all clinical MSK applications, from quick scans and needle visualisation to full advanced diagnostic examinations at referral level. Powerful functionality includes excellent B-mode imaging, with colour, pulsed wave and power doppler imaging as standard. For high quality examinations and reduced scan times.

Probes

Available with a range of high definition probes:

Linear Array L741 (Vascular, Small parts, MSK etc.), 4-16 MHz/ 46 mm
Linear Array L742(Vascular, Small parts, MSK etc.), 4-16 MHz/ 38 mm
Linear Array L752(Vascular, Small parts, MSK etc.), 4-16 MHz/ 52 mm
Linear Array 12L-A(Vascular, Small parts, MSK etc.), 3-17 MHz/ 52 mm
Linear Array 12L-B(Vascular, Small parts, MSK etc.), 3-17 MHz/ 38 mm
Convex Array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0 MHz/ R50 mm
Convex Array C1-6 (Single crystal) (Abdominal, Obstetrics, Gynecology), 1.0-8.0 MHz/ R50 mm
Convex Array C613(Cardiology, Pediatrics), 3-15 MHz/ R14mm
Phased Array 3P-A (Cardiac, Transcranial), 1.0-5.4 MHz
Phased Array 7P-B (Cardiac, Transcranial, Infant), 2-9MHz
Phased array S1-5 (Single crystal) (Cardiac, Transcranial), 1.0-7.0 MHz
Endocavity 6V3 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R10 mm
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3-15 MHz/ R11 mm
Endocavity 6V3A (Gynecology, Obstetrics), 3-15 MHz/ R8 mm
Endocavity 6V7 (Gynecology, Obstetrics), 3-15 MHz/ R10 mm
Volumetric Convex Array VC6-2(Obstetrics, Abdominal, Gynecology), 2-6.8 MHz/ R40 mm
Volumetric Endocavity VE9-5 (Obstetrics, Gynecology, Urology), 2-13 MHz/ R10 mm
Biplane BCL10-5 (Urology), Convex 3.9-11 MHz/ R10mm, Linear 6-15 MHz/ 60mm
Phased Array Transesophageal MPTEE (Cardiac), 4-13 MHz
Linear Array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Linear Array 12LI-A (Intra-operative), 4-16MHz/ 33mm
Linear Array 12LT-A (Intra-operative), 4-16MHz/ 33mm
Convex Array 6CT-A (Intra-operative), 3-15MHz/ R40mm
Convex Array 6CI-A (Intra-operative), 3-15MHz/ R40mm

Sonoscape Probe Brochure

Hardware

P20 Standard Configurations:

P20 Main Unit size: 751×518×1350mm
21.5" High Resolution LED Color Monitor
13.3" High Resolution Touch Screen
Height Adjustable and Rotatable Operation Panel
Extended Keyboard
Five Transducer Connectors (Four Active + One Parking)
One Pencil Transducer Connector
Wifi Module
Hard Disk 500G

Optional configurations:

The Fifth Active Transducer Connector
ECG (Hardware / Cables: Must be Configured with ECG Software)
Built-in Battery
Built-in DVD

Software

P20 Standard Configurations:

μ-Scan (2D Speckle Reduction Technology)
B (2B & 4B) Mode
Color Doppler Flow Imaging
Pulse Wave Doppler Imaging
HPRF
Continuous Wave Doppler Imaging
Power Doppler Imaging / Directional Power Doppler Imaging
M Mode
Tissue Harmonic Imaging
Tissue Specific Imaging
Simult Mode (Triplex)
Pulse Inversion Harmonic Imaging
Spatial Compound Imaging
LGC (Lateral Gain Compensation)
Full Screen Zoom
Image Rotation
Real-time 2D Panoramic Imaging
Biopsy Guide
PW Auto Calculation
Auto NT
Auto IMT
Auto EF
TEI Index
S-Guide
Auto Optimization (One Button Optimization for 2D / Color / PW)
DICOM 3.0: Store / C-Store / Worklist / MPPS / Print / SR / Q&R

Optional Configurations:

ECG (Configured with ECG Hardware and Cables)
Color M Mode
Anatomic M Mode
Tissues Doppler Imaging
Trapezoidal Imaging
Real-time Color Panoramic Imaging
VIS-Needle (Needle Visualization Enhancement)
Freehand 3D Imaging
Static 3D / 4D
Auto Face (Configured with 3D / 4D Module at the Same Time)
S-Live (S-Live / S-Live Silhouette)
S-Depth
AVC Follicle (Auto Volume Calculation)
Stress Echo
C-xlasto (Compression Elastography Imaging)
Contrast Imaging

Sonoscape Probe Brochure

Training and CPD

All purchases come with in depth training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install and additional CPD is available on a one-to-one or group basis.
