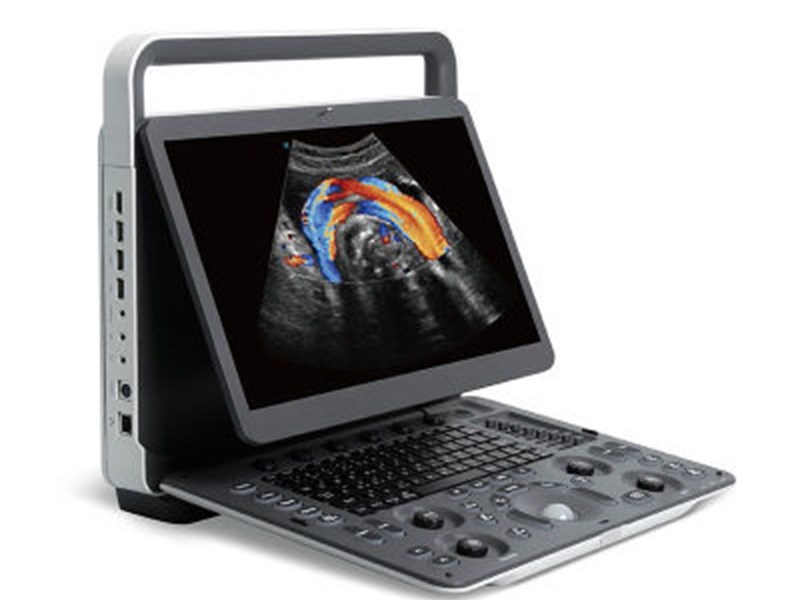

SonoScape E2

Our New compact, lightweight hand-carried Colour Doppler Ultrasound scanner for high resolution imaging with advanced features. The E2 with quick ‘boot-up’ time is easy-to-use with logical controls designed for smooth workflow. The E2 provides full 2D Black/White, Colour Doppler imaging and PW to provide full ‘Duplex’ and ‘Triplex’ scanning.

Probes

Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
Convex array 3C-A (Abdominal, Obstetrics, Gynecology), 1.0-7.0MHz/ R50mm
Phased array 7P-B (Cardiac, Transcranial), 2.0-9.0MHz
Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm
Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
Phased array 3P-A (Cardiac, Transcranial), 1.0-6.0MHz
Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Endocavity linear array L741V, 12-5 MHz/ 46mm
Convex array C322(Abdominal Biopsy), 2-6.8 MHz/ R20mm
Convex array 6CT-A (Intra-operative), 3-15MHz/ R40mm

Sonoscape Probe Brochure

Hardware

Standard Hardware include:

E2 main unit
15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
Two transducer connector
USB 2.0/Hard Disk 500 G
Standard Battery
Adaptor

Closed size: 378×352×114mm

Weight: 6.4 kg

Software

Standard Software include:

Imaging modes: B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
Dynamic Multi-beam Technology
Tissue Harmonic Imaging
Pure Inversion Harmonic Imaging
Tissue Specification Imaging
Spatial Compound Imaging
Widescan: Trapezoid Imaging
Convex Extended Imaging
μ-Scan: 2D speckle reduction technology
PW Auto Trace
TEI Index
DICOM 3.0
Auto: Auto optimization forB/ M/ PW/ CW
TGC: Time gain compensation
Duplex
Triplex
B/C dual live
Standby Mode
Zoom
Show Galary
2D Steer
Auto IMT
Biopsy Guide

Optional configurations:

Downloads

E2 Catalogue

Full Technical Specification

Sonoscape Probe Brochure

Accessories

Trolley
Backpack
Large Capacity Battery
Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
B/W video printer: SONY UP-D897/SONY UP-X898MD
Footswitch
External DVD
Bluetooth Controller
