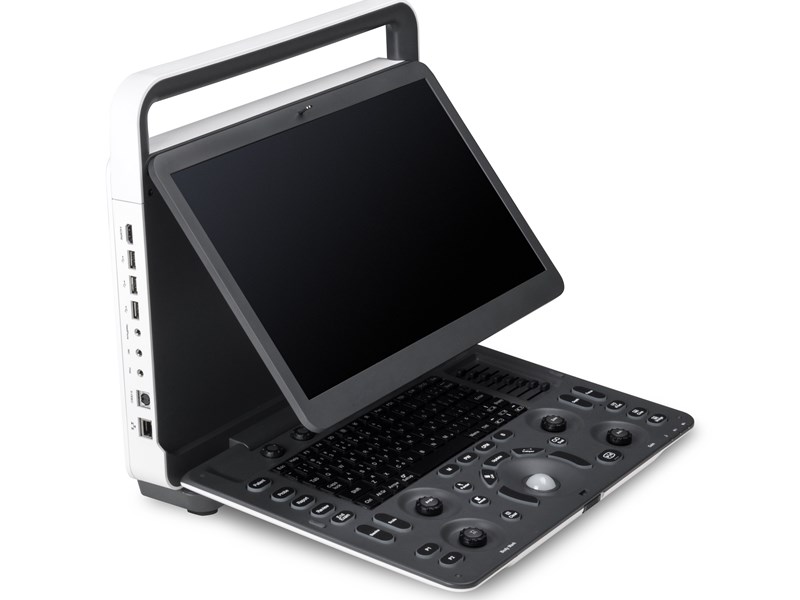

SonoScape E1
Our compact, lightweight hand-carried Black/White scanner with high resolution imaging through easy-to-use logical controls designed for smooth workflow with quick ‘boot-up’ time. The E1 provides very affordable imaging at entry level with many advanced features including Pulse Wave doppler and Auto trace functions.
- Linear array L746 (Vascular, Small Parts, MSK etc.), 4.0-12.0MHz/ 50mm
- Convex array C361 (Abdominal, Obstetrics, Gynecology) 2.0-6.0MHz/ R60mm
- Endocavity EC9-5 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/R8mm
- Micro-convex array C613 (Cardiology, Pediatrics), 4.0-13.0MHz/ R14mm

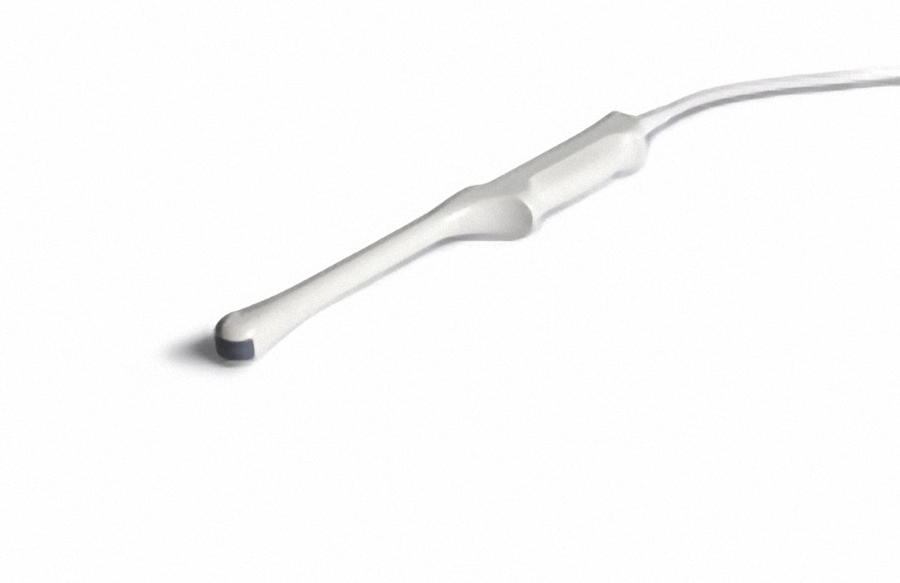

- Endocavity 6V1 (Gynecology, Obstetrics, Urology), 3.0-15.0MHz/ R11mm
- Linear array L741(Vascular, Small Parts, MSK etc.), 4.0-16.0MHz/ 46mm
- Endocavity linear array L741V, 12-5 MHz/ 46mm
- Linear array 10I2 (Intra-operative), 4-16 MHz/ 25mm
Standard Hardware include:
- E1 main unit
- 15.6" High Resolution LCD color monitor (with auto-adaptive LED backlight)
- Two transducer connector
- USB 2.0/Hard Disk 500 G
- Adaptor
- Standard battery
Closed size: 378×352×114mm
Weight: 6.4 kg
Standard Software include:
- Imaging modes: B/ 2B/ 4B/ M
- Dynamic Multi-beam Technology
- Tissue Harmonic Imaging
- Pure Inversion Harmonic Imaging
- Tissue Specification Imaging
- Spatial Compound Imaging
- Widescan: Trapezoid Imaging
- μ-Scan: 2D speckle reduction technology
- TEI Index
- DICOM 3.0
- Auto: Auto optimization for B/ M/ PW
- TGC: Time gain compensation
- Zoom
- Standby Mode
- Show Gallery
- 2D Steer
- Auto IMT
- Biopsy Guide
Optional configurations:
- PW & Auto trace
- Duplex
- LGC: Lateral gain compensation
- Convex Extended Imaging
- Vis-Needle
- B Mode Prospective Saving
- 2D Panoramic Imaging
- Wifi Module
- Trolley
- Backpack
- Large Capacity Battery
- Color ink-jet printer: HP Officejet Pro 8000/HP Office jet Pro K5400
- B/W video printer: SONY UP-D897/SONY UP-X898MD
- Footswitch
- External DVD
- Bluetooth Controller
Training and CPD
All purchases come with in depth training, and ongoing support to ensure you get the best results from your SonoScape scanner. Required pre-sets will be programmed at install and additional CPD is available on a one-to-one or group basis.
Servicing
All our scanners require regular servicing, our dedicated team of engineers are able to service units at a time convenient for you to ensure your machine remains in top condition.
Free Demonstration
Celtic SMR is offering free demonstrations of the SonoScape E1 so please call us on 0800 279 9050 to find out more.
